Defi DIN Gauge Style21 Triple Gauge Red Letter DF14404

Condition

Fully integrated body triple meter with DIN standard size (pressure gauge: 1 pc / thermometer: 1 pc / temperature gauge: 1 pc)

2 temperature sensors and 1 pressure sensor are included in the product.

Defi's highest peak stepping motor STS26B x 3 mounted

Always ensures the highest visibility regardless of ambient brightness. (No illumination interlocking)

Peak hold function (requires a separate commercially available general-purpose switch) - Automatic peak reset when power is turned off

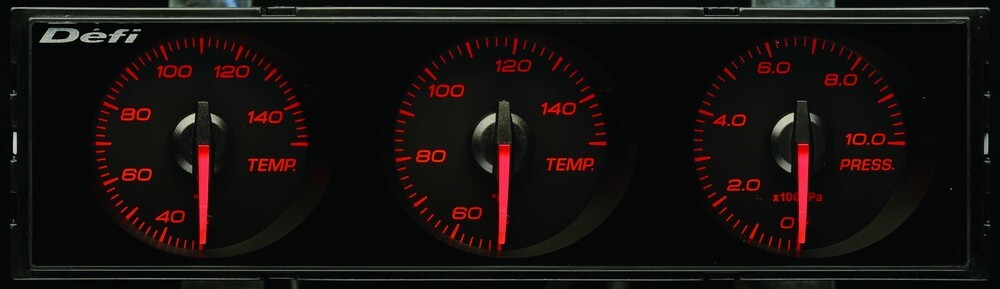

Display range: TEMP(temperature)1: 30 to 150°C / TEMP(temperature)2: 50 to 150°C / PRESS(pressure): 0 to 1,000 kPa

Power supply voltage: DC10V to 16V (for 12V cars only)

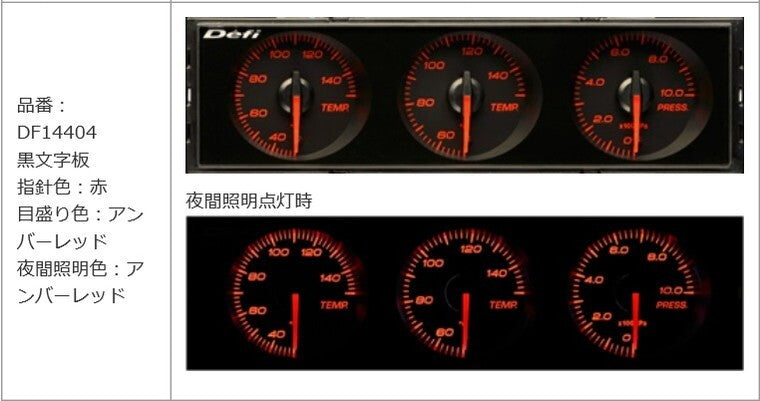

Color of dial: black

Illumination color: Amber red *Illumination color cannot be switched. Indicator: Red

Sensor screw pitch: TEMP (temperature) sensor: 1/8PT, PRESS (pressure) sensor: 1/8PT

Cautions for installation and handling

Separate commercially available attachment is required.

Operates by itself. Control unit is not required.
